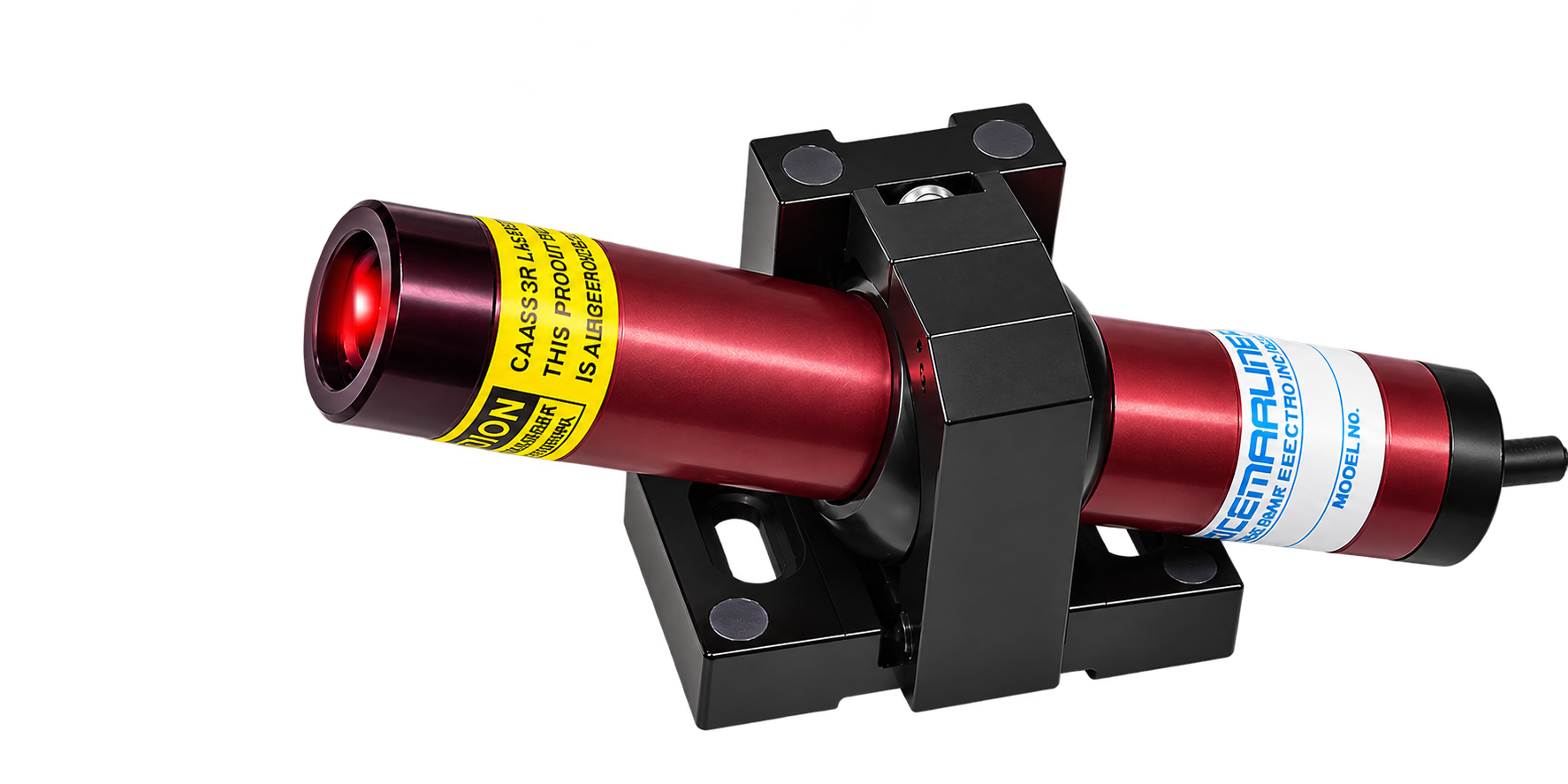

CL-800 Series Laser

The ultimate in line generation technology using our patented linear lens, the CL-800 series is the most durable laser on the market. It may be used for a wide range of applications such as wood ,textiles, stone, metal just to name a few.

Cemar Electro series 800 lasers are small enough to fit into the palm of your hand yet powerful enough to project a brilliant line in the brightest conditions. Designed and built to be the most reliable lasers on the market today. CL-800 series lasers are built tough and can handle virtually any environment. A mounting bracket, power supply to suit your requirements and our patented line generator optics are included with every laser.

Optical Power Line Length Line Width/
Dot Size
Wavelength
CL-800
0.9mW Dot 1mm @ 25.4mm to 6mm @ 16.7mm
1/32 inch @ 1inch to 1/4 inch @ 50 ft
670 nm
5 mW 1m (3ft) 1mm @ 1m distance (0.04 inch @ 3 ft) 670 nm
5 mW 2.5m (8ft) 1mm @ 3m distance (0.04 inch @ 10 ft) 635 nm
10 mW 4m (12ft) 1mm @ 3m distance (0.04 inch @ 10 ft) 635 nm
15 mW 10m (30ft) 1mm @ 3m distance (0.04 inch @ 10 ft) 635 nm
20 mW 15m (45ft) 1mm @ 3m distance (0.04 inch @ 10 ft) 635 nm
30 mW 20m (60ft) 1mm @ 3m distance (0.04 inch @ 10 ft) 635 nm
CL-801
CL-805
CL-810
CL-815
CL-820
CL-830

Click here to see application photos and dimensional drawings

Click here to see mounting options.

Power Supply: 90~240VAC 9~35
DC Power Consumption: 1 Watt max.
Operating Temperature: -10°~40°C 14°~100°F

Approvals:

approvals
classII_caution_new



*Call us for additional power options to suit your needs.

Available Opticsoptics



Click here to see accessories for this product.

Cemarline Powershift

The R & D team at Cemar Electro has developed “Powershift™” a technique to deliver a more uniform line from angle-mounted lasers. Used with our patented linear lens we are able to shift some of the laser power to maintain the intensity throughout the length of the line.

Uniform line Intensity

Other Lasers use cylindrical optics and a fan lens to spread the light. This creates a line that is bright in the middle but faded at the tips:

gaussian

When angle mounted lasers use a fan lens to spread the light over the length of the line it loses intensity and fades out as it extends outward.

gaussian-laser

With Cemar Electro’s patented linear lens, the projected light is distributed equally over the entire length of the line:

non-gaussian

With Cemarline “Powershift™” the laser power is shifted slightly to the far end of the line delivering a clear balanced line from beginning to end.

non-gaussian-laser
